Active learning with subset simulation#
Explore rare, separated failure regions using active learning and replicated subset sampling.
Before you start: active learning and subset simulation; install the optional al extra for Kriging.
Problem and approach#
For rare failure, a fixed Monte Carlo candidate pool can contain very few points near the failure surface. Here subset simulation constructs new conditional populations after each surrogate fit. The limit-state model is still evaluated only at the initial design and selected enrichment points.
This tutorial credits:
Au & Beck (2001) for subset simulation.
Moustapha, Marelli & Sudret (2022) for the four-component active-learning framework.
Teixeira, Nogal & O’Connor (2021) for their review of adaptive reliability methods.
Cotter, Roberts, Stuart & White (2013) for Gaussian-preserving pCN proposals.
PySTRA implements a documented variant: exploratory subsets use the optimistic surface mean - 2 std, and independent final runs use the fitted mean. This is not Bayesian subset simulation or a reproduction of the review’s much larger benchmark configuration. Install the optional Kriging dependency with pip install -e ".[al]" from the v2.0 checkout.
[1]:
import warnings
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy.stats import norm
from sklearn.exceptions import ConvergenceWarning
from scipy.special import logsumexp
import pystra as ra
pd.options.display.float_format = "{:.6g}".format
from pystra.active_learning import (
ActiveLearning,
SubsetSimulationEstimator,
AllCriteria,
BetaBounds,
BetaStability,
)
def normal_model():
model = ra.StochasticModel()
model.add_variable(ra.Normal("x0", 0, 1))
model.add_variable(ra.Normal("x1", 0, 1))
return model
def analyze(function, seed=7):
analysis = ActiveLearning(
model=normal_model(),
limit_state=ra.LimitState(function),
surrogate_kwargs={"n_restarts": 0, "noise": 1e-8},
estimator=SubsetSimulationEstimator(n_samples=4000, n_replications=8),
stopping_criterion=AllCriteria(
criteria=(
BetaBounds(consecutive=2, target_cov=0.15),
BetaStability(consecutive=2, target_cov=0.15),
)
),
max_iterations=200,
rng=seed,
)
# Keep optimizer warnings out of the tutorial output; convergence is checked below.
with warnings.catch_warnings():
warnings.filterwarnings("ignore", category=ConvergenceWarning)
result = analysis.run()
assert result.converged, result.status
return analysis, result
A rare linear failure surface#
For independent standard normals, \(Z=(X_0+X_1)/\sqrt{2}\) is standard normal. For \(g=4.5-Z\), the exact failure probability is \(\Phi(-4.5)\), about \(3.40\times10^{-6}\). A direct Monte Carlo pool of 10,000 points has only 0.034 expected failures.
The adaptive estimator starts with 30 true observations in two dimensions. It generates conditional populations closer to the surrogate failure event, then uses the U function to choose additional true evaluations. The combined beta-band/stability policy separates convergence from point selection. The slightly larger GP nugget in this example improves numerical conditioning; optimizer warnings remain visible.
[2]:
linear_analysis, linear_result = analyze(lambda x0, x1: 4.5 - (x0 + x1) / np.sqrt(2))
linear_reference = norm.sf(4.5)
pd.DataFrame(
[
{
"Reference Pf": linear_reference,
"Estimated Pf": linear_result.failure_probability,
"Sampling CoV": linear_result.sampling_cov,
"True evaluations": linear_result.n_limit_state_evaluations,
"Surrogate evaluations (final)": linear_result.n_estimation,
"Converged": linear_result.converged,
}
]
)
[2]:
| Reference Pf | Estimated Pf | Sampling CoV | True evaluations | Surrogate evaluations (final) | Converged | |
|---|---|---|---|---|---|---|
| 0 | 3.39767e-06 | 3.56093e-06 | 0.0608682 | 32 | 175988 | True |
Two separated failure regions#
For \(g=16-X_0^2\), failure occurs in either tail, \(X_0\leq-4\) or \(X_0\geq4\). The exact probability is \(2\Phi(-4)\). Finding one tail alone would understate failure probability by half, so validation must check each region separately. This quadratic benchmark also lets us inspect the surrogate approximation without using a fitted numerical reference.
[3]:
tail_analysis, tail_result = analyze(lambda x0, x1: 16 - x0**2)
tail_reference = 2 * norm.sf(4)
pd.DataFrame(
[
{
"Reference Pf": tail_reference,
"Estimated Pf": tail_result.failure_probability,
"Sampling CoV": tail_result.sampling_cov,
"True evaluations": tail_result.n_limit_state_evaluations,
"Replications": len(tail_result.estimate.diagnostics),
"Converged": tail_result.converged,
}
]
)
[3]:
| Reference Pf | Estimated Pf | Sampling CoV | True evaluations | Replications | Converged | |
|---|---|---|---|---|---|---|
| 0 | 6.33425e-05 | 6.39496e-05 | 0.0514989 | 35 | 8 | True |
Sampling dependence and model error are different#
The final estimator averages independent complete subset runs. Within a run, conditional states are correlated. Each level reports acceptance and a chain variance factor; the overall CoV uses the larger standard error from full-run replication and an aggregate within-chain approximation. Replication captures variation caused by shared chain ancestry and adaptive thresholds that an IID formula omits. This is an estimated sampling error, not a certified bound.
There is no binomial confidence interval for subset samples. Neither a small sampling CoV nor a narrow surrogate band establishes that all failure regions were found. The plot below separates prediction spread from between-run sampling variation.
[4]:
axis = np.linspace(-5.5, 5.5, 301)
points = np.column_stack((axis, np.zeros(len(axis))))
fig, axes = plt.subplots(1, 2, figsize=(11, 4), constrained_layout=True)
ra.plotting.plot_surrogate_slice(
tail_analysis.surrogate_model,
points,
limit_state=lambda points: 16 - points[:, 0] ** 2,
ax=axes[0],
)
axes[0].set_title("Both failure boundaries")
axes[0].legend(fontsize=8)
replicates = [run.failure_probability for run in tail_result.estimate.diagnostics]
axes[1].bar(
np.arange(1, len(replicates) + 1),
np.array(replicates) / tail_reference,
color="tab:blue",
)
axes[1].axhline(1, color="black", linestyle="--", label="Exact reference")
axes[1].set(
xlabel="Independent subset run",
ylabel="Estimated Pf / reference Pf",
title="Final sampling variation",
)
axes[1].legend(fontsize=8)
plt.show()
pd.DataFrame(
[
{
"Level": index,
"Threshold": level.threshold,
"Conditional probability": level.conditional_probability,
"Acceptance": level.acceptance_rate,
"Chain variance factor": level.variance_factor,
}
for index, level in enumerate(tail_result.estimate.diagnostics[0].levels)
]
)
[4]:
| Level | Threshold | Conditional probability | Acceptance | Chain variance factor | |
|---|---|---|---|---|---|
| 0 | 0 | 13.3299 | 0.1 | 1 | 1 |
| 1 | 1 | 9.5659 | 0.1 | 0.577222 | 2.22779 |
| 2 | 2 | 5.43281 | 0.1 | 0.442222 | 2.78474 |
| 3 | 3 | 1.23371 | 0.1005 | 0.358333 | 2.7724 |
| 4 | 4 | 0 | 0.52025 | 0.293218 | 4.94672 |

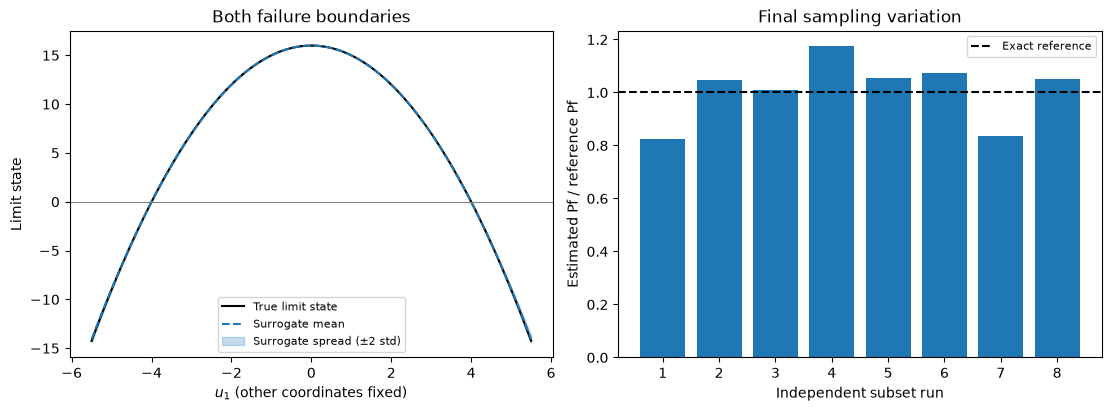

Figure. Enrichment and probability diagnostics for the two-tail rare event show why both failure regions and sampling precision must be checked.
Independent checks in both tails#
Ordinary Monte Carlo would give few validation failures at this probability. Instead, draw validation points from the equal mixture \(q(u_0)=\tfrac12\phi(u_0-4)+\tfrac12\phi(u_0+4)\), with \(u_1\sim N(0,1)\). The weight \(\phi(u_0)/q(u_0)\) converts misclassified fractions back to the original normal probability measure. This independent validation calculation is not an active importance-sampling estimator.
The regression tests use seeds 7, 23 and 101, limit total misclassified mass to 10 % of reference Pf, and missed mass in each tail to 5 %. The classical four-branch example is also tested, including all four failure regions. These are benchmark acceptance budgets, not universal error guarantees.
[5]:
rng = np.random.default_rng(892)
validation = rng.normal(size=(100_000, 2))
validation[:, 0] += rng.choice([-4, 4], size=len(validation))
log_proposal = logsumexp(
np.stack(
(
norm.logpdf(validation[:, 0] - 4),
norm.logpdf(validation[:, 0] + 4),
)
),
axis=0,
) - np.log(2)
weights = np.exp(norm.logpdf(validation[:, 0]) - log_proposal)
truth = 16 - validation[:, 0] ** 2 <= 0
prediction = (
np.concatenate(
[
tail_analysis.surrogate_model.predict(batch)[0]
for batch in np.array_split(validation, 50)
]
)
<= 0
)
misclassified = np.mean(weights * (truth != prediction))
assert misclassified < 0.1 * tail_reference
validation_results = []
for name, region in (
("Left tail", validation[:, 0] < -4),
("Right tail", validation[:, 0] > 4),
):
missed = np.mean(weights * region * (~prediction))
assert missed < 0.05 * tail_reference
validation_results.append(
{
"Region": name,
"Missed probability mass": missed,
"Fraction of total reference Pf": missed / tail_reference,
}
)
print(f"Total misclassified mass / reference Pf: {misclassified/tail_reference:.3%}")
pd.DataFrame(validation_results)
Total misclassified mass / reference Pf: 0.306%
[5]:
| Region | Missed probability mass | Fraction of total reference Pf | |
|---|---|---|---|
| 0 | Left tail | 2.66652e-08 | 0.000420969 |
| 1 | Right tail | 7.97441e-08 | 0.00125894 |
Why pooled subset counts cannot estimate Pf#
Conditional populations deliberately concentrate near failure. Their raw failure fraction is not a normal-space probability. The estimator therefore returns selection points separately from its probability and beta diagnostics. During exploration the mean ± 2 std failure events are nested within the same positive-threshold subsets of mean - 2 std. A common prefix probability times each final conditional fraction supplies the ordered band.
Common random numbers are used between fits to reduce sampling noise in convergence comparisons. Final estimation uses a separate random stream.
[6]:
exploration = tail_analysis.estimator.explore(
tail_analysis.surrogate_model.predict,
dimension=2,
rng=np.random.default_rng(42),
n_candidates=5000,
)
pd.DataFrame(
[
{
"Raw pooled fraction (not Pf)": np.mean(exploration.mean <= 0),
"Subset Pf estimate": exploration.estimate.failure_probability,
"Exploratory probability band": exploration.probability_band,
"Reference Pf": tail_reference,
}
]
)
[6]:
| Raw pooled fraction (not Pf) | Subset Pf estimate | Exploratory probability band | Reference Pf | |
|---|---|---|---|---|
| 0 | 0.0908 | 6.43456e-05 | (6.236667187500002e-05, 6.637146093750002e-05) | 6.33425e-05 |
Budget failure stays visible#
Subset simulation must reach the target failure event before its estimate can be accepted. An inadequate level budget returns an incomplete record with infinite sampling CoV. A stalled positive threshold behaves similarly. The active runner can continue enrichment after incomplete exploration, but cannot report convergence from it. An independent final-estimator failure appears as estimation_failed after otherwise successful surrogate stopping.
Increasing sample size or replication count improves sampling precision; increasing max_levels permits rarer events. Neither replaces independent surrogate validation. The legacy standalone pystra.SubsetSimulation remains available as a baseline with its documented correlation-omitting CoV.
[7]:
unfinished = SubsetSimulationEstimator(n_samples=100, max_levels=1).estimate(
lambda points: (5 - points[:, 0], np.zeros(len(points))),
dimension=2,
rng=np.random.default_rng(7),
)
assert not unfinished.converged
assert unfinished.status == "max_levels"
assert np.isinf(unfinished.sampling_cov)
print(
f"Completed: {unfinished.converged}; status: {unfinished.status}; CoV: {unfinished.sampling_cov}"
)
Completed: False; status: max_levels; CoV: inf
Interpretation#
Reported sampling precision is conditional on the fitted surrogate. Replicated subset estimates quantify sampling variation; independent classification checks address different errors in the response approximation.
Continue: User guide · API reference · Theory
