FORM, SORM and design-point diagnostics

First-order reliability method (FORM)

Let \(\mathbf{Z}\) be a set of uncorrelated and standardized normally distributed random variables \(( Z_1 ,\dots, Z_n )\) in the normalized z-space, corresponding to any set of random variables \(\mathbf{X} = ( X_1 , \dots , X_n )\) in the physical x-space, then the limit-state surface in x-space is also mapped on the corresponding limit-state surface in z-space.

According to Definition (10), the reliability index \(\beta\) is the minimum distance from the z-origin to the failure surface. This distance \(\beta\) can directly be mapped to a probability of failure

(1)\[ p_f \approx p_{f1} = \Phi(-\beta)\]

this corresponds to a linearization of the failure surface. The linearization point is the design point \(\mathbf{z}^*\). This procedure is called the first-order reliability method (FORM), and \(\beta\) is the first-order reliability index. [Madsen2006]

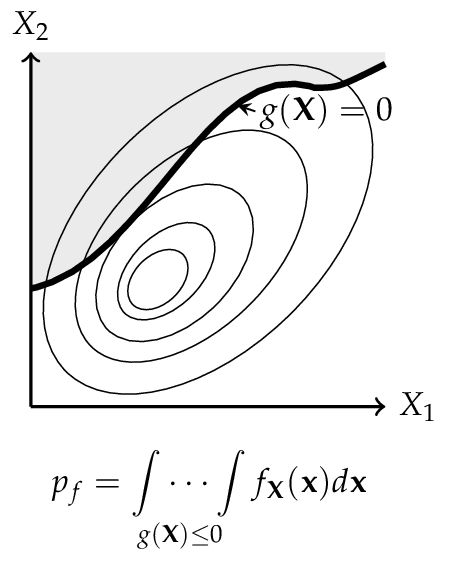

Representation of a physical space with a set \(\mathbf{X}\) of any two random variables. The shaded area denotes the failure domain and \(g(\mathbf{X}) = 0\) the failure surface.

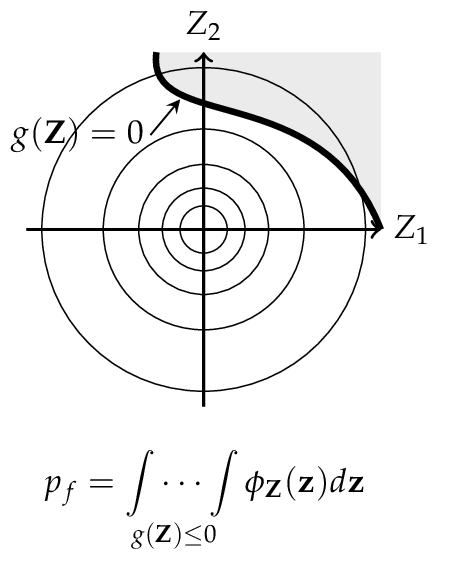

After transformation in the normalized space, the random variables \(\mathbf{X}\) are now uncorrelated and standardized normally distributed, also the failure surface is transformed into \(g(\mathbf{Z}) = 0\).

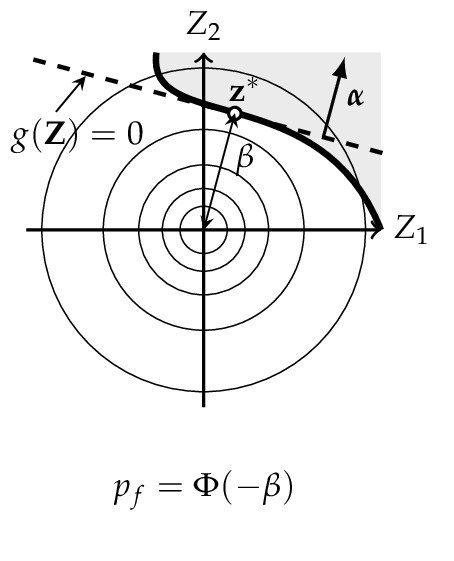

FORM corresponds to a linearization of the failure surface \(g(\mathbf{Z}) = 0\). Performing this method, the design point \(\mathbf{z}^*\) and the reliability index \(\beta\) can be computed.

Second-order reliability method (SORM)

FORM approximates the failure surface \(g(\mathbf{Z}) = 0\) by a tangent hyperplane at the design point. When the failure surface has significant curvature at the design point, this linear approximation can over- or under-estimate \(p_f\). The Second-Order Reliability Method (SORM) improves on FORM by fitting a quadratic surface (paraboloid) to \(g(\mathbf{Z}) = 0\) at the design point, thereby capturing second-order effects [Baker2010].

Quadratic approximation in rotated space

Starting from the FORM design point \(\mathbf{z}^*\) and the unit direction vector \(\boldsymbol{\alpha} = -\mathbf{z}^*/\beta\), the standard normal space is rotated so that \(\mathbf{z}^*\) lies at distance \(\beta\) along the last axis. Let \(\mathbf{R}\) denote the orthonormal rotation matrix constructed by Gram–Schmidt orthonormalization with \(\boldsymbol{\alpha}\) in the last row, and let \(\mathbf{u}' = \mathbf{R}\,\mathbf{z}\) be coordinates in the rotated space. In these coordinates the failure surface is approximated as:

\[g(\mathbf{u}') \approx \beta - u'_n + \tfrac{1}{2} \sum_{i=1}^{n-1} \kappa_i \,(u'_i)^2\]

where \(\kappa_i\) are the principal curvatures of the failure surface at the design point and \(u'_n\) is the coordinate along the design-point direction. Positive curvature means the failure surface curves away from the origin (conservative with respect to FORM); negative curvature means it curves towards the origin (unconservative).

The key task is to determine the principal curvatures \(\kappa_i\). PySTRA provides two approaches.

Curve-fitting

The default method (fit="curve") obtains the curvatures from the Hessian matrix of the limit-state function. The Hessian \(\mathbf{H}\) of \(g\) at the design point \(\mathbf{z}^*\) is computed by finite differences of the gradient that is already available from FORM. This matrix is then rotated and normalized:

\[\mathbf{A} = \frac{\mathbf{R}\,\mathbf{H}\,\mathbf{R}^T} {\lVert \nabla g(\mathbf{z}^*) \rVert}\]

The principal curvatures \(\kappa_i\) are the eigenvalues of the leading \((n{-}1) \times (n{-}1)\) sub-matrix of \(\mathbf{A}\) (i.e.the block excluding the last row and column, which corresponds to the design-point direction). These curvatures are symmetric: the paraboloid has the same curvature on both sides of each principal axis.

The Breitung approximation [Breitung1984] then gives the second-order failure probability:

(2)\[p_{f2} = \Phi(-\beta) \prod_{i=1}^{n-1} \left(1 + \kappa_i \,\beta\right)^{-1/2}\]

This result is asymptotically exact as \(\beta \to \infty\).

Point-fitting

An alternative method (fit="point") determines the curvatures by locating fitting points directly on the failure surface, without computing the Hessian. For each of the \(n{-}1\) principal axes in the rotated space, a pair of trial points is placed at \(u'_i = \pm k\beta\) (where \(k\) is an adaptive step coefficient), with all other off-axis coordinates set to zero and \(u'_n = \beta\). Newton iteration along the \(u'_n\)-direction then drives each point onto the surface \(g = 0\).

Once a fitting point has converged, its curvature is computed from the displacement along the design-point direction:

\[\kappa_i = \frac{2\,(u'_n - \beta)}{(u'_i)^2}\]

Because points are fitted on both the positive and negative sides of each axis, the method yields asymmetric curvatures \(\kappa_i^+\) and \(\kappa_i^-\). The generalized Breitung formula for asymmetric curvatures is:

(3)\[p_{f2} = \Phi(-\beta) \prod_{i=1}^{n-1} \frac{1}{2} \left[ \left(1 + \beta\, \kappa_i^+\right)^{-1/2} + \left(1 + \beta\, \kappa_i^-\right)^{-1/2} \right]\]

When the curvatures are symmetric (\(\kappa_i^+ = \kappa_i^-\)), this reduces to the standard Breitung formula (2).

Hohenbichler–Rackwitz modification

The Breitung formula is asymptotically exact for large \(\beta\) but can be inaccurate for moderate values. Hohenbichler and Rackwitz [Hohenbichler1988] proposed replacing \(\beta\) in the curvature terms with:

\[\psi = \frac{\phi(\beta)}{\Phi(-\beta)}\]

where \(\phi\) is the standard normal PDF. The quantity \(\psi\) is the conditional mean of the standard normal distribution given that it exceeds \(\beta\), and provides a better local expansion for moderate reliability indices. The modified formula is:

(4)\[p_{f2}^{\text{HR}} = \Phi(-\beta) \prod_{i=1}^{n-1} \left(1 + \psi\, \kappa_i\right)^{-1/2}\]

with the obvious extension to asymmetric curvatures from point-fitting. Both the standard and modified Breitung results are reported by PySTRA.

Validity and method comparison

The Breitung and Hohenbichler–Rackwitz formulas require each curvature term in the product to be positive. For the standard Breitung formula this means \(\kappa_i > -1/\beta\); for the modified formula, \(\kappa_i > -1/\psi\). If any curvature violates this bound the approximating paraboloid opens towards the origin and the second-order approximation is invalid.

The two fitting methods offer different trade-offs:

• Curve-fitting requires fewer limit-state evaluations (one gradient perturbation per random variable) and produces symmetric curvatures. It is well suited to smooth failure surfaces where the curvature is approximately the same on both sides of the design point.

• Point-fitting requires more evaluations (Newton iteration for each of \(2(n{-}1)\) fitting points) but captures asymmetric curvature. This is advantageous when the failure surface has markedly different shapes on each side of the design point, as can occur with non-linear limit-state functions.

Strong Maximum Test

A converged local FORM design point need not represent every important failure region. The Strong Maximum Test [DutfoyLebrun2006] probes an enlarged sphere around the origin for failure points outside the candidate’s vicinity. PySTRA implements the independent standard normal case described by OpenTURNS. See Checking a FORM design point for geometric examples and Strong Maximum Test for the API.

Sphere geometry

Let the candidate be \(u^*\), with \(\beta=\|u^*\|>0\), and assume that the origin is strictly safe. A density ratio \(0<\varepsilon<1\) defines the relevant normal-density radius \(r_\varepsilon\):

\[\frac{\varphi_n(r_\varepsilon e)}{\varphi_n(u^*)}=\varepsilon, \qquad r_\varepsilon=\sqrt{\beta^2-2\log\varepsilon}, \qquad \|e\|=1.\]

With enlargement factor \(\tau>1\), the sampled sphere has radius

\[r=\beta+\tau(r_\varepsilon-\beta) =\beta(1+\tau\delta_\varepsilon),\qquad \delta_\varepsilon=r_\varepsilon/\beta-1.\]

Independent Gaussian directions normalized to length \(r\) give uniform sphere samples. A point is near the candidate when

\[u\cdot\frac{u^*}{\beta}>\beta, \quad\text{equivalently}\quad \cos\angle(u,u^*)>\frac{\beta}{r}.\]

Crossing near/far with safe/failure gives four retained point groups. PySTRA classifies failure by \(g<0\). Far failure points are possible restart locations for additional design-point searches, not optimized design points themselves. The magnitude of \(g\) does not measure a region’s probability importance.

Cap probability and evaluation budget

The reference detection cap has half-angle \(\theta=\arccos(r_\varepsilon/r)\), which differs from the candidate vicinity angle \(\arccos(\beta/r)\). For dimension \(n>1\), its normalized surface area is

\[p_\mathrm{cap}=\frac12 I_{\sin^2\theta} \left(\frac{n-1}{2},\frac12\right),\]

where \(I\) is the regularized incomplete beta function. In one dimension the sphere consists of two points and \(p_\mathrm{cap}=1/2\). For \(N\) independent samples, nominal cap-detection confidence is

\[c_N=1-(1-p_\mathrm{cap})^N,\qquad N=\left\lceil\frac{\log(1-c)}{\log(1-p_\mathrm{cap})}\right\rceil.\]

PySTRA rounds upward to meet the requested nominal confidence; OpenTURNS’ reference implementation rounds to the nearest integer. Users can specify confidence or a fixed count, with a hard max_points budget checked before sphere evaluation. The total is \(N+2\) point evaluations including the origin and boundary checks. The cap can become small in high dimensions, so inspect the budget before using an expensive structural model.

Interpretation and limitations

Nominal confidence is a sampling statement about hitting a fixed cap under the test’s local-plane and failure-region extent assumptions. It is not a posterior probability that FORM is correct, a failure-probability estimate, or a bound on approximation error. A bounded failure island entirely inside the sphere cannot be detected, regardless of sample count. The tutorial constructs such an island closer to the origin than the supplied candidate.

Use the diagnostic on individual SystemFORM.component_results to look for missed regions within each component. Checking every component does not validate the system probability. With a non-Gaussian copula, use Rosenblatt so that the sphere geometry and cap probability apply in independent normal space. Generalized Student-t Nataf would require different density-radius geometry and is not supported by this implementation.
